160mm Double Wall Corrugated Pipes

Name: 160mm Double Wall Corrugated Pipes
Brand: XENON PIPES INDIA PRIVATE LIMITED
Price: 181.0 INR
Availability: InStock

Price 181.0 INR/ Meter

Get a Price/Quote

160mm Double Wall Corrugated Pipes Specification

Application
Underground cable ducting, Drainage, Sewerage systems, Storm water management, Telecommunications

Feature
High ring stiffness, Smooth inner surface, Corrugated outer surface, Lightweight, Easy handling, UV resistant, Non-corrosive

Pressure
Suitable for low to medium pressure applications

Life Span
Over 50 years

Product Type
Double Wall Corrugated (DWC) Pipe

Material
Other

Shape
Round, double wall corrugated

Standard
IS 16098 Part 2, IS 14930, ISO 21138, EN 13476

Connection Type
Push fit/snap fit with rubber ring couplers

Length
Standard 6 meters; available in custom lengths upon request

Thickness
Varies from 3 mm to 6 mm (depending on specifications)

Diameter
160 mm (outer diameter)

Weight
Approx. 3 to 6 kg/m (varies based on wall thickness)

Color
Orange

Abrasion Resistance
High

Chemical Resistance
Excellent resistance to acids, alkalis, and salts

Bend Radius
Minimum 30 times outer diameter

Installation Method
Trench or direct burial installation

Inner Diameter
Approx. 140 mm

Jointing System
Flexible, leak-proof jointing with couplers

UV Stabilized
Yes

Operating Temperature Range
-10C to +60C

Environment Impact
Non-toxic, recyclable, environmentally friendly

Density
0.94 - 0.96 g/cm3 (Material Density)

Fire Retardancy
Available as per requirement

160mm Double Wall Corrugated Pipes About

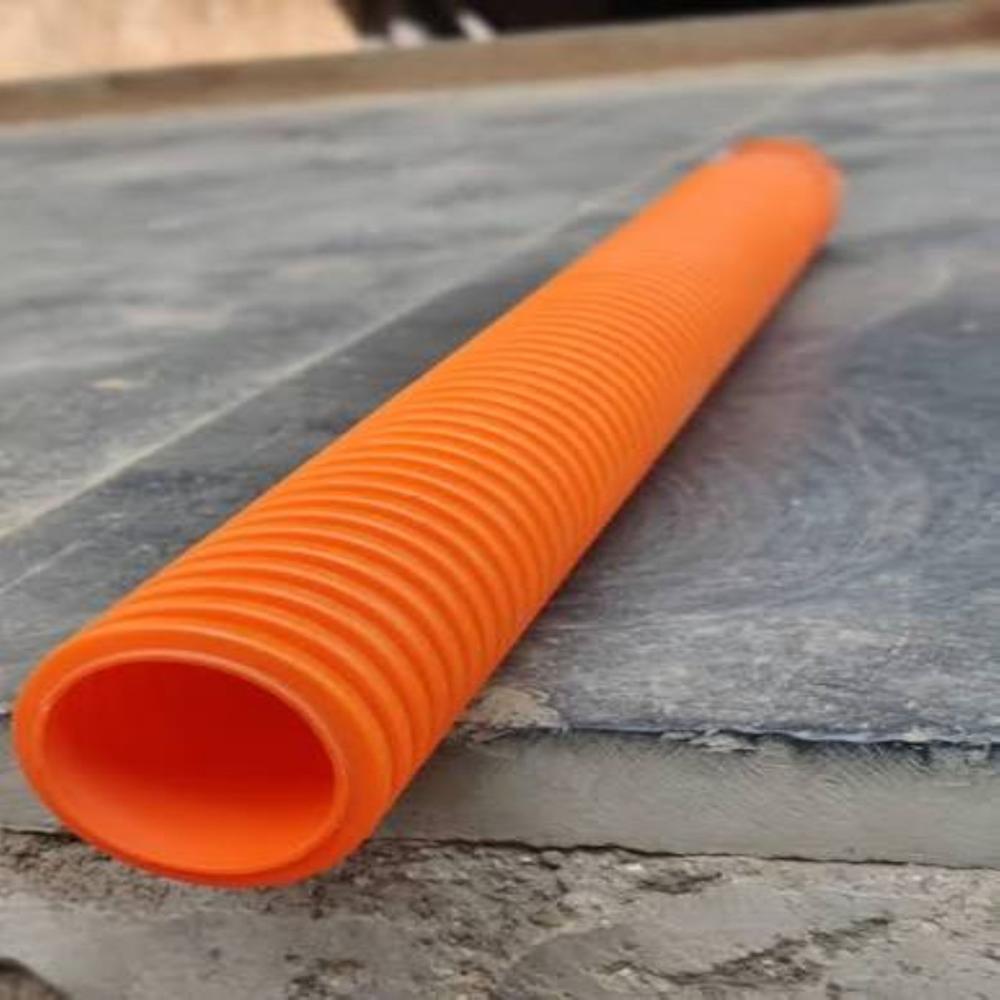

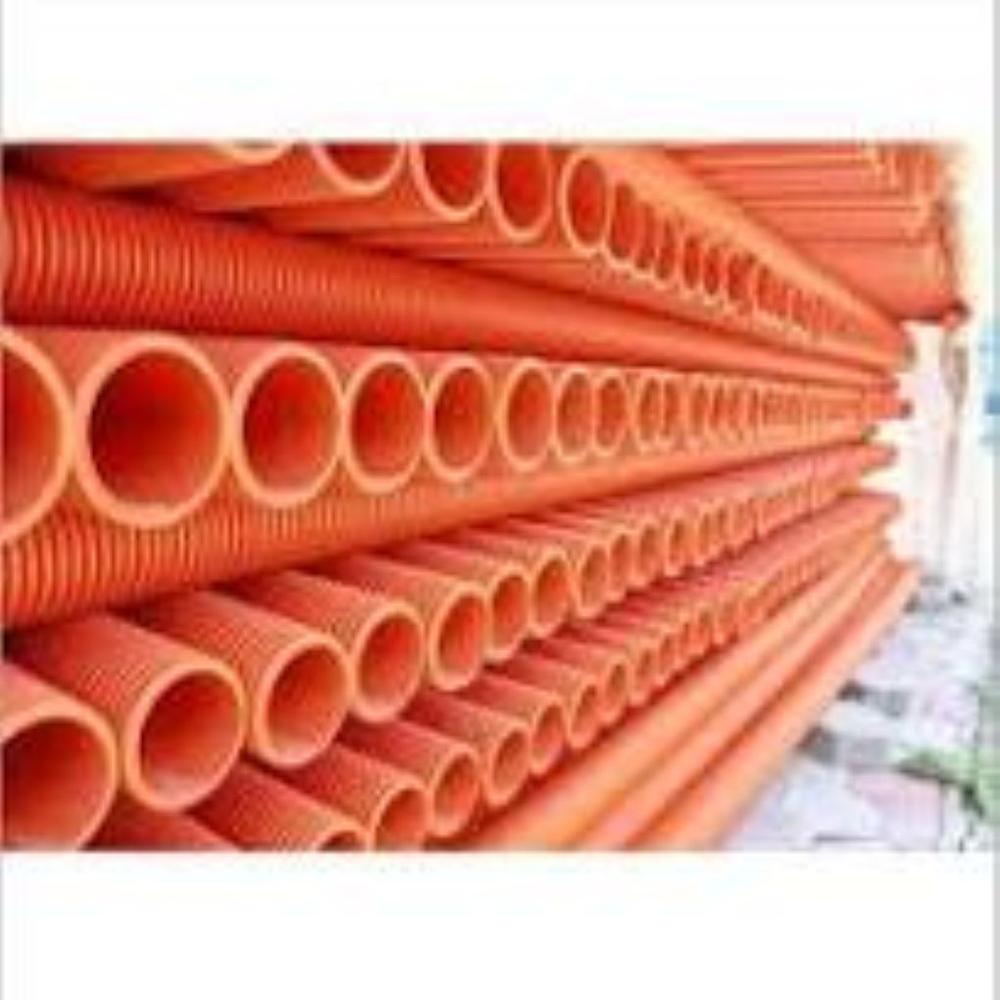

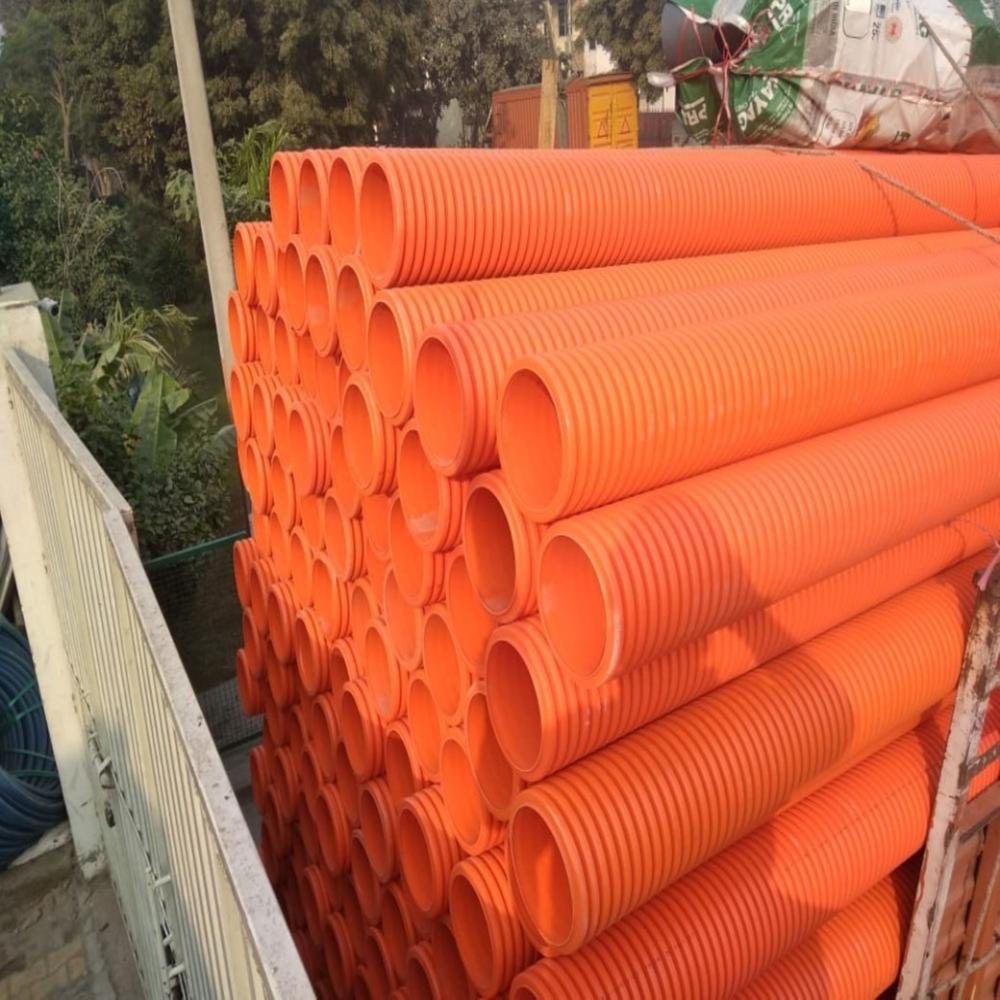

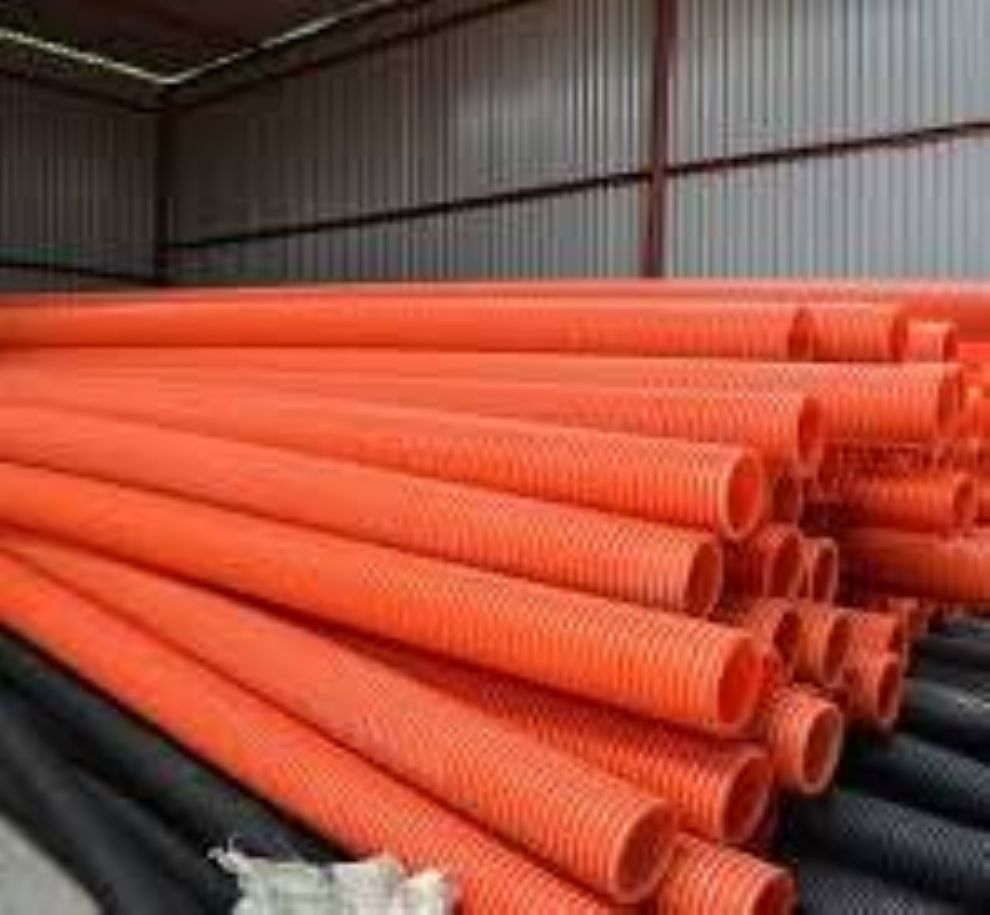

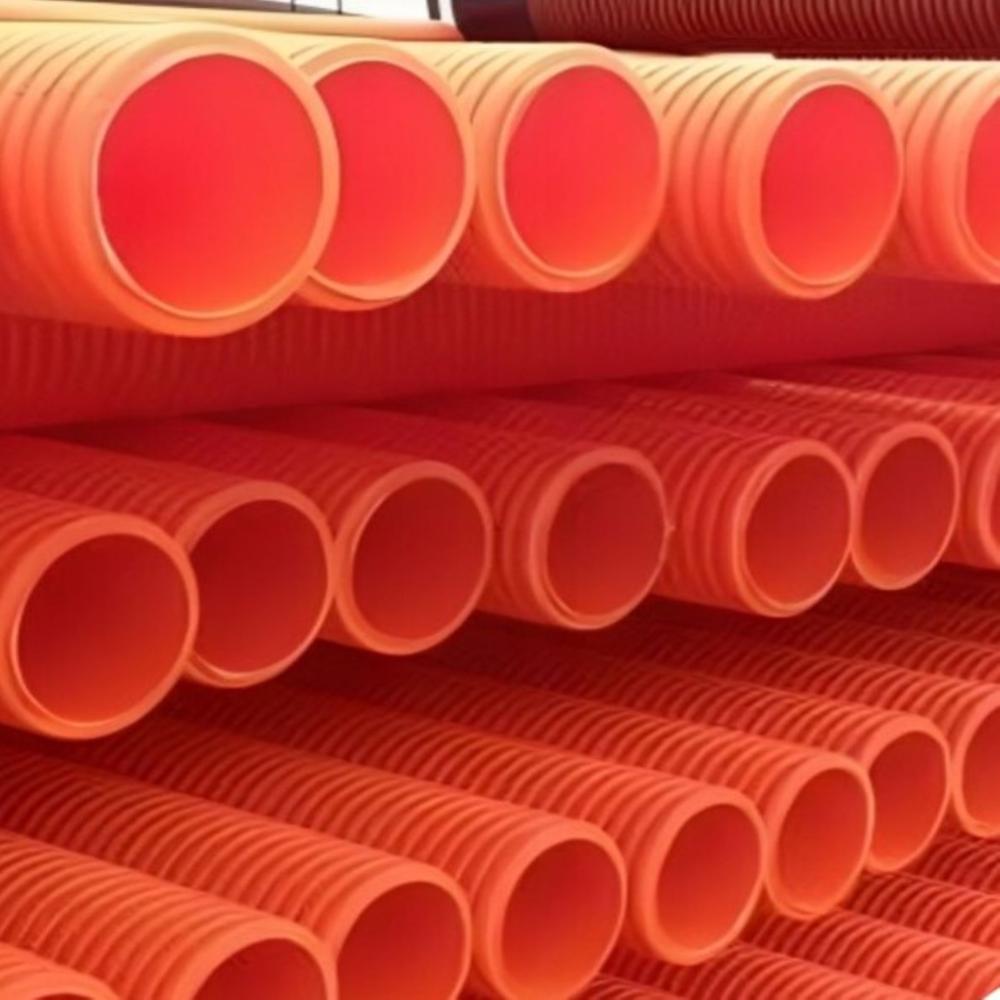

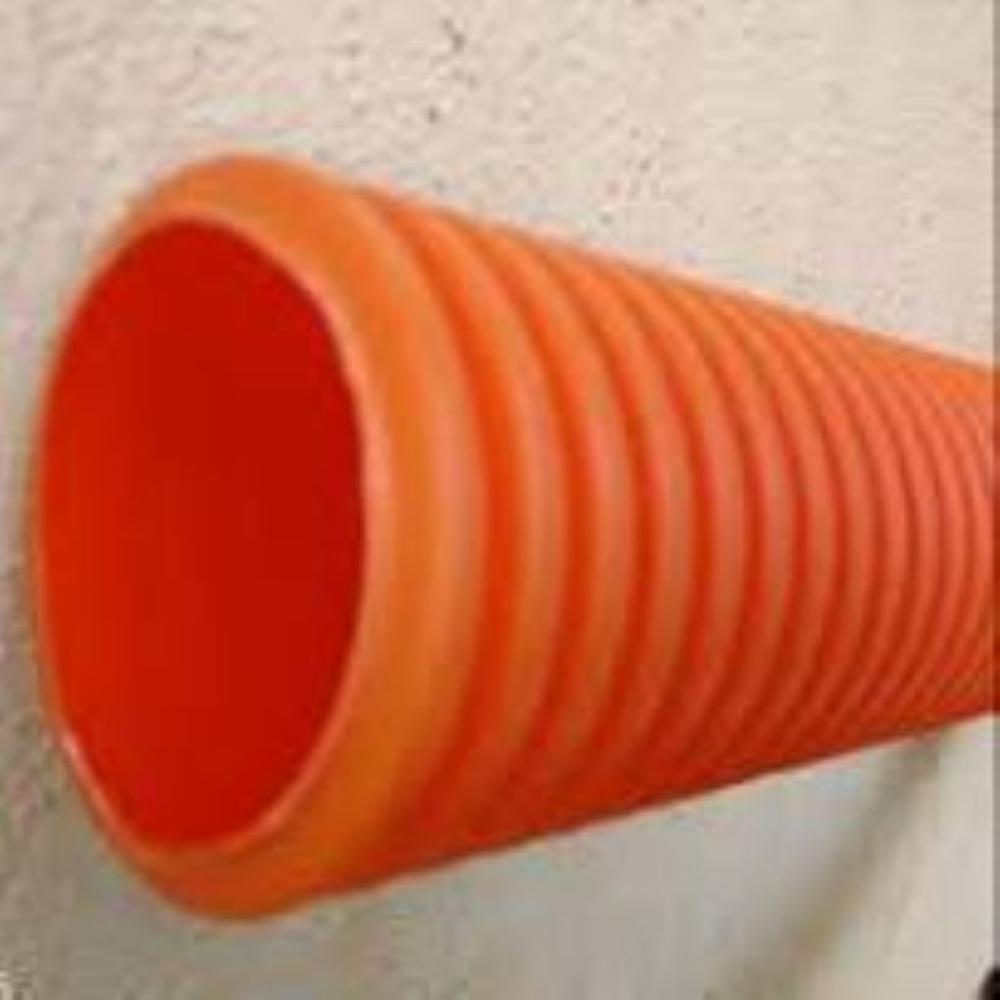

The 160mm DWC (Double Wall Corrugated) Pipe is a high-strength HDPE pipe specially designed for underground cable protection and drainage applications. It features a corrugated outer wall for superior ring stiffness and load-bearing capacity, along with a smooth inner wall that allows easy cable pulling and efficient flow. Manufactured from premium-grade High Density Polyethylene (HDPE), the pipe offers excellent resistance to corrosion, chemicals, moisture, and impact, ensuring reliable long-term performance.

The 160mm DWC pipe is lightweight, easy to transport and install, and is widely used in electrical, telecom, infrastructure, railway, highway, and municipal projects. Its durable construction provides a service life of over 50 years under normal operating conditions.

Applications

Underground electrical cable protection
Telecom and OFC cable ducting
Smart city infrastructure projects
Highway and railway cable networks
Industrial cable routing
Storm water drainage systems
Municipal utility networks

Key Features

Size (OD): 160 mm
Material: High Density Polyethylene (HDPE)
Construction: Corrugated outer wall with smooth inner wall
Standard Length: 6 meters (or as required)
Color: Orange (commonly used for electrical cable ducting)
High ring stiffness and crush resistance
Corrosion, chemical, and moisture resistant
Lightweight and easy to install
UV stabilized for outdoor storage
Smooth inner surface for easy cable pulling
Low maintenance and long service life (50+ years)

Versatile Core Applications

These double wall corrugated pipes are widely used in underground cable ducting, drainage, sewerage systems, storm water management, and telecommunications. Their robust chemical and abrasion resistance enable reliable performance even in demanding conditions, providing long-term solutions for a variety of infrastructure and utility projects.

Superior Durability and Safety

Constructed from UV-stabilized and fire-retardant HDPE, these pipes assure a lifespan of over 50 years. The non-toxic, recyclable nature further enhances their environmental friendliness. Their high ring stiffness and smooth inner surface maximize flow efficiency, while the corrugated outer wall offers additional structural resilience.

FAQ's of 160mm Double Wall Corrugated Pipes:

Q: How are 160mm Double Wall Corrugated Pipes installed for underground use?

A: These pipes can be installed using trench or direct burial methods. Installation involves excavating the trench, laying the pipe with proper bedding, and connecting sections using the flexible, leak-proof couplers with rubber ring fittings.

Q: What are the main benefits of using these pipes in sewerage and drainage systems?

A: The primary advantages include excellent chemical and abrasion resistance, high ring stiffness, lightweight construction for easy handling, non-corrosive properties, and a lifespan exceeding 50 years. Their smooth inner surface ensures efficient flow while minimizing clogging.

Q: When is fire retardancy required, and how is it provided?

A: Fire retardancy is specified based on project requirements, particularly in sensitive or high-risk environments. When required, the pipes are supplied with fire-retardant properties as part of the manufacturing process to enhance safety.

Q: Where can these pipes be effectively used aside from sewerage and drainage?

A: Besides sewerage and drainage, these pipes are suitable for underground cable ducting, storm water management, and telecommunications due to their structural strength, chemical resistance, and reliable jointing system.

Q: What makes the jointing system of these pipes leak-proof?

A: The pipes utilize a push fit or snap fit system with precision-engineered rubber ring couplers, ensuring a snug, flexible, and leak-proof connection between pipe sections. This design accommodates ground movement and expansion without compromising integrity.

Q: How does the pipe design contribute to long service life and environmental safety?

A: Manufactured from non-toxic, recyclable HDPE and stabilized against UV radiation, these pipes resist chemical corrosion and aging. Their high-density material and structural design support a lifespan over 50 years while minimizing environmental impact.

Q: What standards govern the quality and suitability of these pipes?

A: These pipes conform to key standards such as IS 16098 Part 2, IS 14930, ISO 21138, and EN 13476, ensuring compliance with national and international requirements for underground piping systems.
