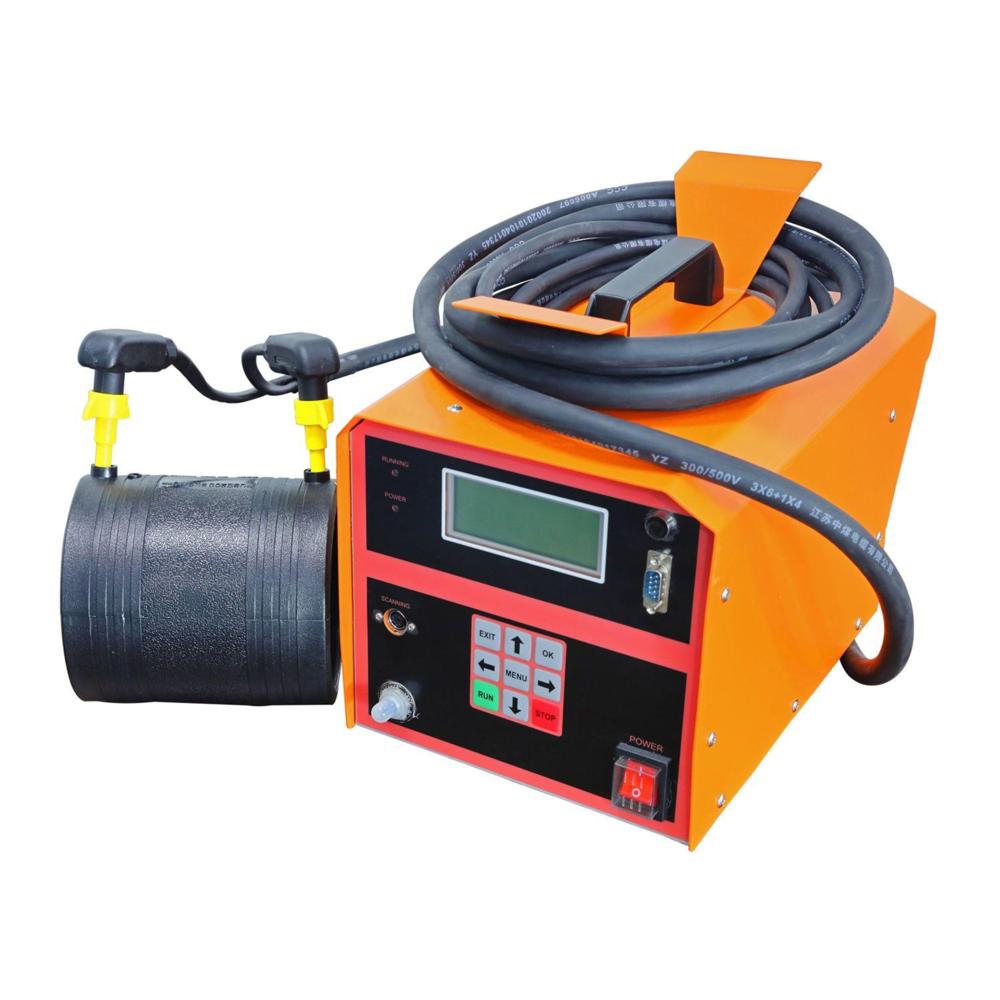

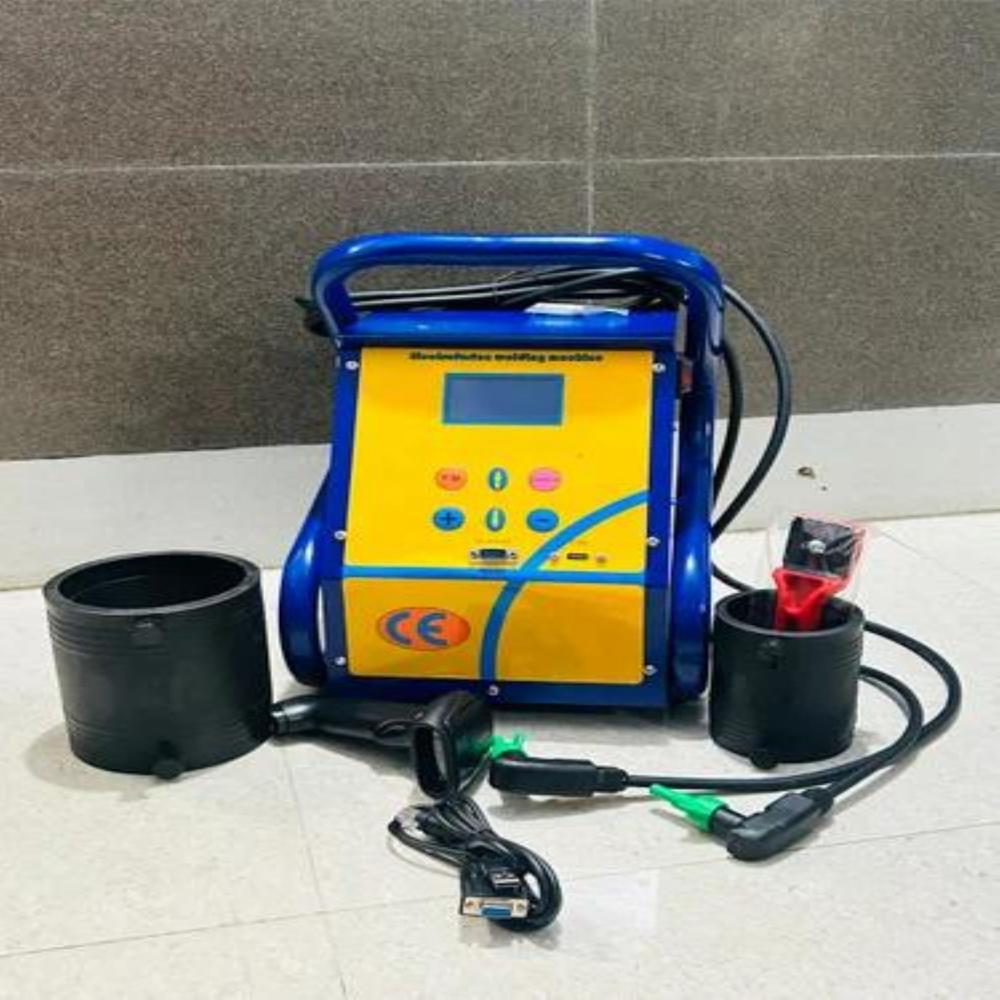

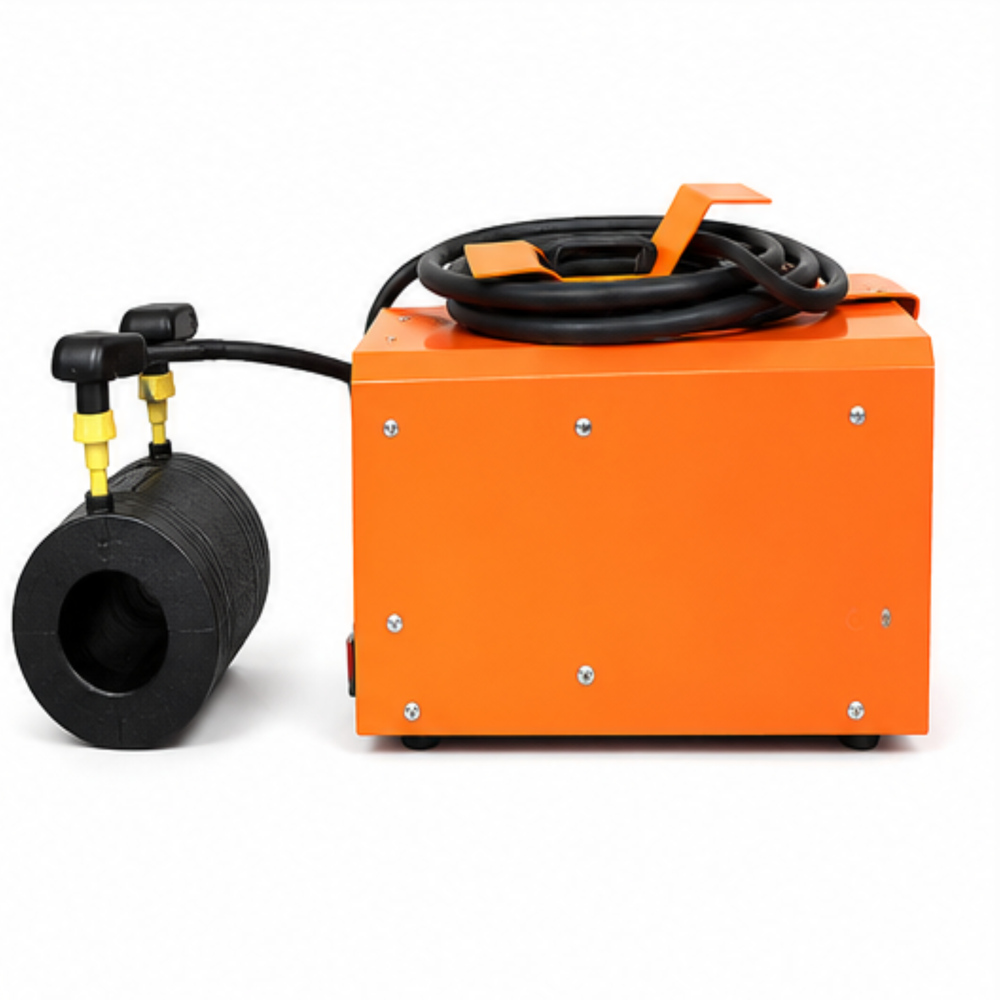

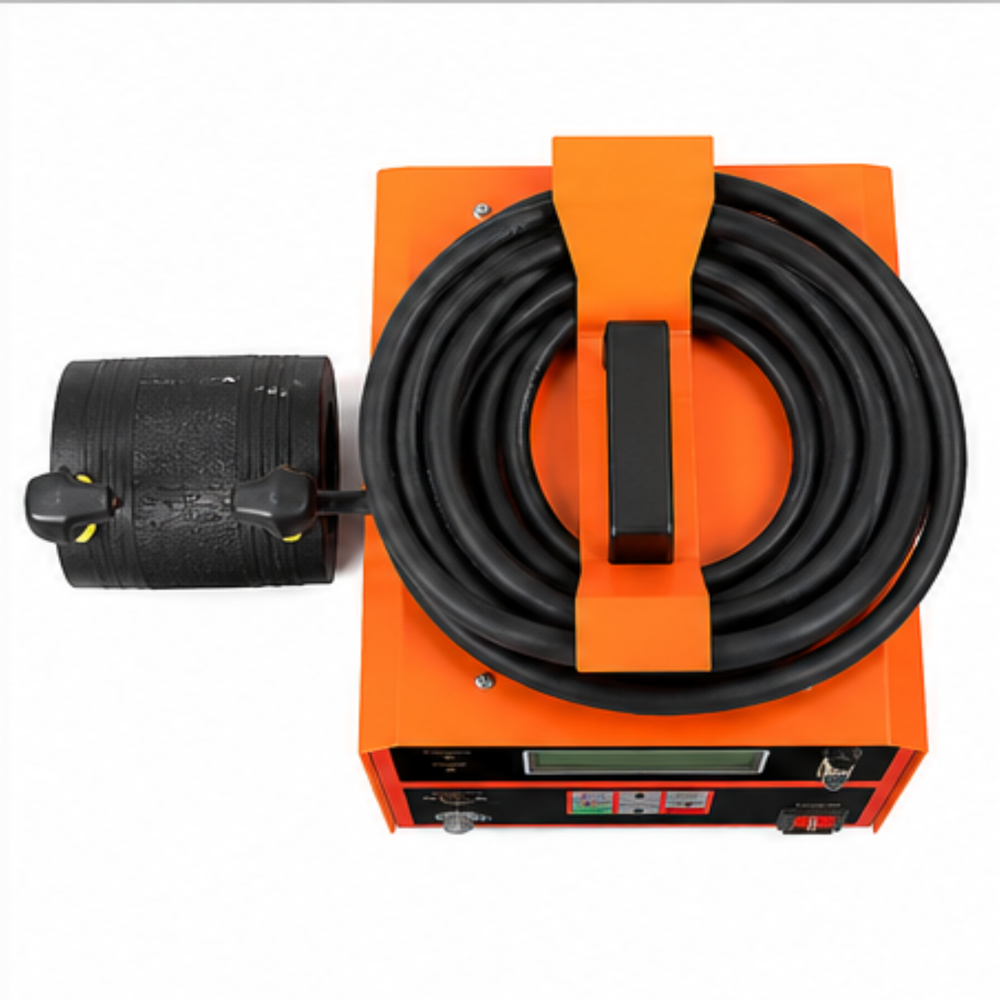

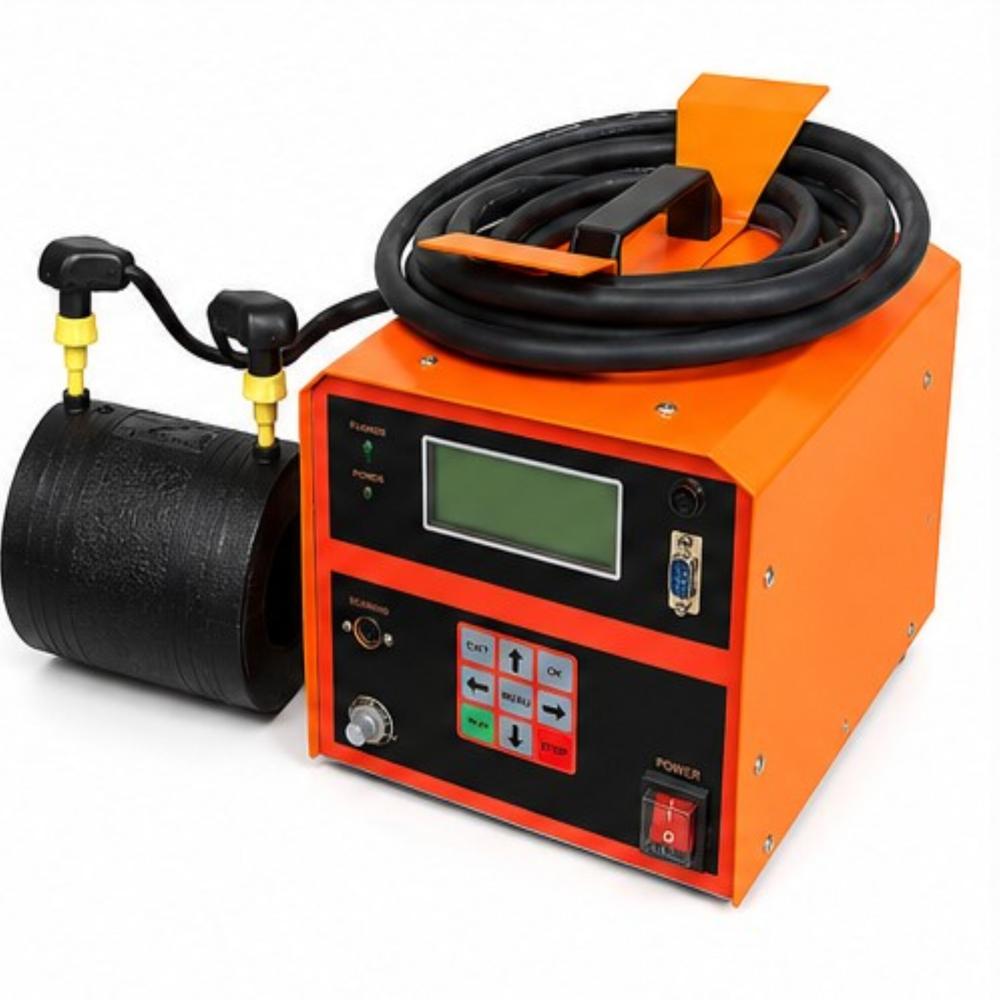

Send InquiryElectrofusion Welding Machine
Price 18000.0 INR/ Unit
MOQ : 5 Units
Electrofusion Welding Machine Specification
- Temperature Range
- -10C to +50C operating range
- Diameter
- Applicable to various diameters (20-400mm)
- Connection Type
- Electrofusion Socket
- Flexibility
- Semi-rigid cables
- Coating Type
- Epoxy Powder coating
- Tolerance
- 2% (Welding Current Precision)
- Bend Radius
- Cable bend radius > 100mm
- Product Type
- Electrofusion Welding Machine
- Material
- Other
- Connection
- Electrofusion Coupler with cable connectors
- Shape
- Rectangular box unit with display and connectors
- Standard
- Other
- Surface Treatment
- Powder coating
- Outer Diameter
- Supported pipe coupling size: 20mm - 400mm
- Section Shape
- Rectangular
- Length
- Machine: 400mm; Cable length: 3m
- Thickness
- Sheet metal 1.5 mm
- Color
- Orange-Black
- Usage
- HDPE/PP pipe welding
- Rated Pressure
- N/A (Not pressurized operation)
- Application
- Water/gas pipeline joint welding
- Material Grade
- Industrial Grade
- Protection
- Overload, overheat, and short circuit protection

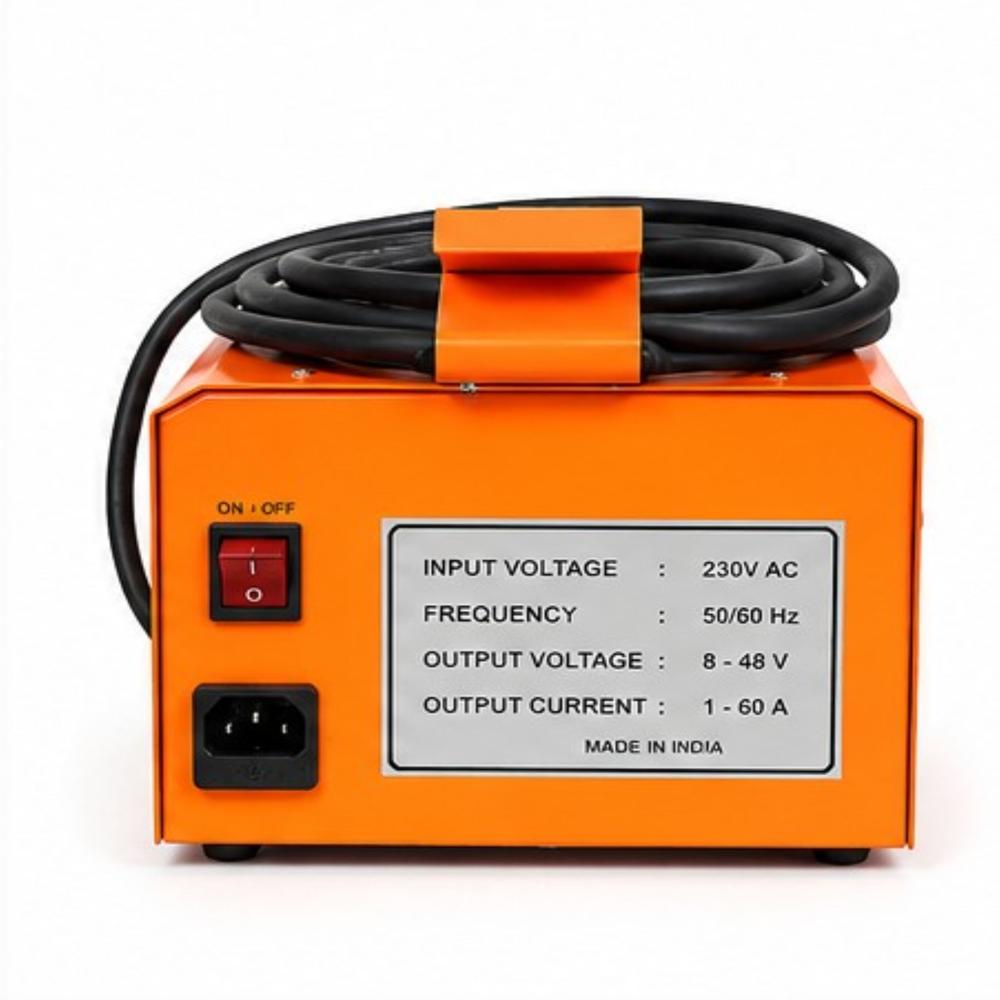

- Input Voltage
- 220V AC 15%, 50/60Hz
- Start/Stop Function
- Automatic with clear start/stop buttons
- Operating Humidity
- Up to 80% non-condensing
- Scanner Option
- Bar code scanning compatibility
- Display
- Digital LCD with welding parameter preview
- Output Voltage
- 8V - 48V DC adjustable
- Alarm
- Visual and audio alarms for process errors
- Weight
- 15 kg approx.
- Transport
- Integrated handle for carrying
- Max Output Power
- 3500W
- Control System
- Microprocessor based; Automatic welding control
- Data Storage
- Welding record memory; up to 500 operations
- Accessories Included
- Output cables, earthing cable, user manual
- Cooling
- Air cooled
Electrofusion Welding Machine About
Superior Welding Precision
Utilizing a microprocessor-based control system, this machine guarantees welding current accuracy within a 2% tolerance. The digital LCD previews key welding parameters, ensuring consistency and reducing manual errors during HDPE or PP pipe joints. Automatic process management adds a layer of reliability crucial for water and gas pipeline installations.
User-Friendly Operation and Data Management
Featuring an integrated barcode scanner option and storage for up to 500 welding records, the machine provides efficient operation tracking. Auto start/stop buttons streamline user workflow, while visual and audio alarms quickly alert the operator to any process anomalies, further safeguarding jobs.
Robust Design for Demanding Conditions
Constructed from powder-coated steel and equipped with heat-resistant polymer cables, the machine withstands challenging site environments. Its ergonomic handle and compact rectangular design afford portability, while industrial-grade build ensures longevity. Air-cooled operation supports prolonged work sessions in climates up to 50C with 80% humidity.
FAQ's of Electrofusion Welding Machine:
Q: How does the automatic welding control system enhance the operation of this electrofusion welding machine?
A: The microprocessor-based automatic welding control maintains precise parameters throughout the welding cycle, minimizing human error. The system ensures consistent and reliable joints, automatically managing heating and cooling times based on the input data or scanned barcodes.Q: What is the process for storing and retrieving welding records on the machine?
A: This machine features integrated data storage capable of recording up to 500 welding operations. Each record can be accessed via the digital LCD interface, allowing users to review welding history for quality assurance and record-keeping purposes.Q: When should I use the visual and audio alarm features?
A: Visual and audio alarms are triggered automatically during welding if errors like overheating, overload, or short circuits occur. Operators should cease work and address the indicated issue whenever an alarm is activated to ensure safety and high weld quality.Q: Where can this machine be used considering its operating conditions?
A: Designed for flexibility, this unit operates reliably in indoor and outdoor environments, with humidity up to 80% and temperatures between -10C and +50C-ideal for water and gas pipeline installations at construction sites or industrial facilities.Q: What benefits does the adjustable output voltage provide during pipe welding?
A: The adjustable voltage (8V to 48V DC) allows customization for a range of pipe diameters and materials, ensuring strong, consistent welds according to the specific requirements of each HDPE or PP connection.Q: How does the portable design aid in field applications?
A: Weighing approximately 15 kg and incorporating an integrated carry handle, the unit is easy to transport between job sites. Its robust, powder-coated steel casing also protects internal components, enhancing reliability in rugged field conditions.
