90mm HDPE Water Pipe

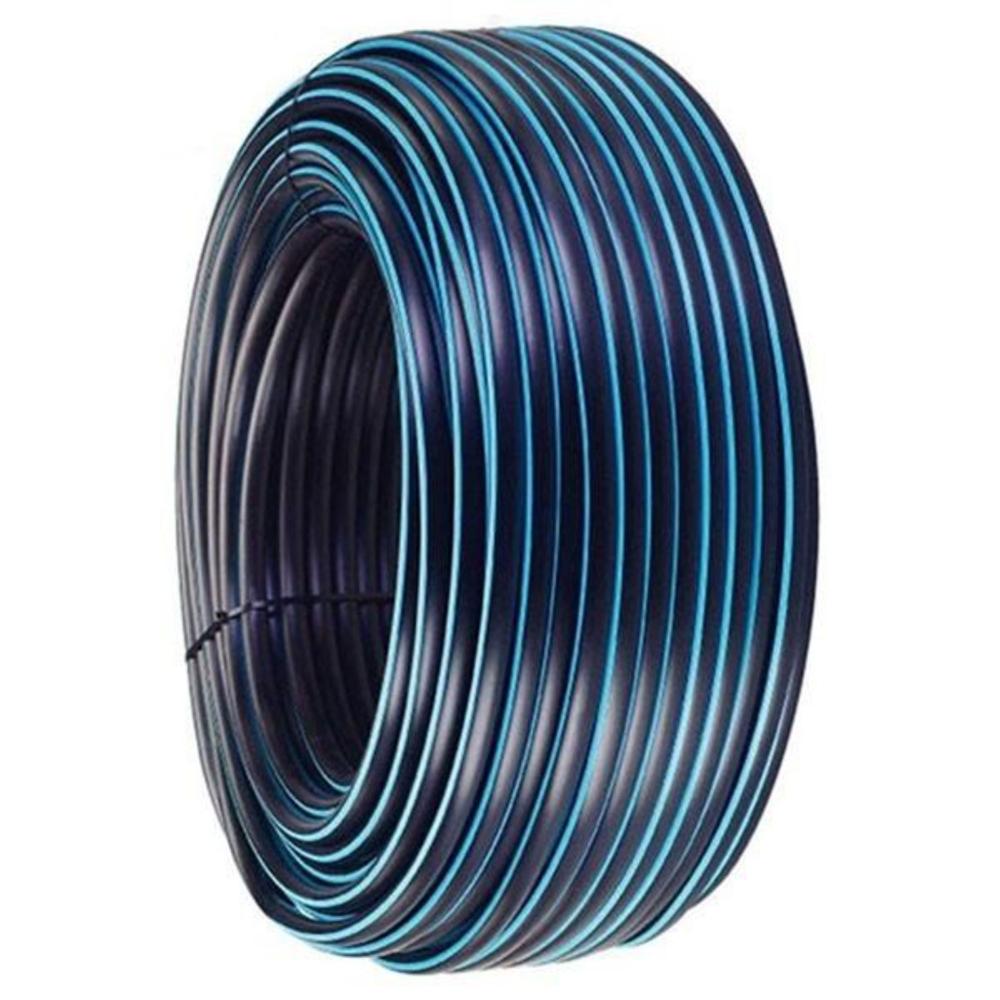

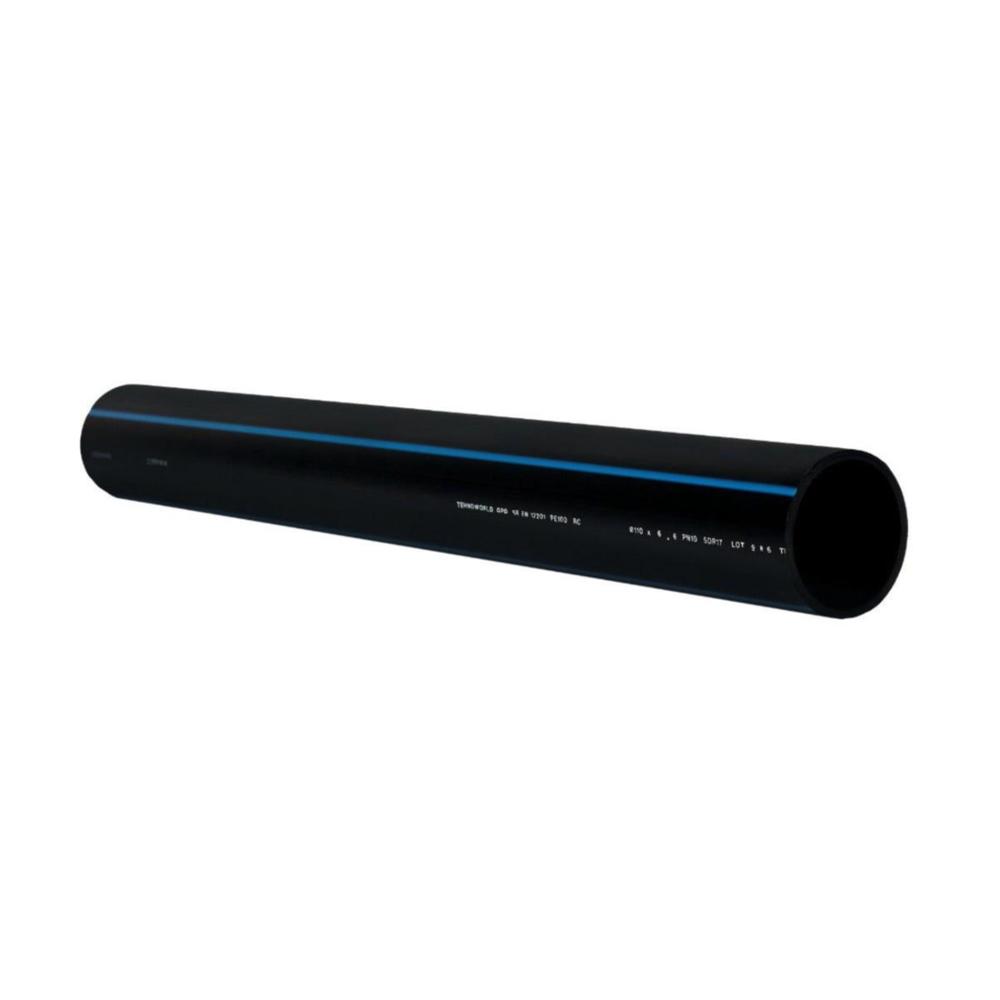

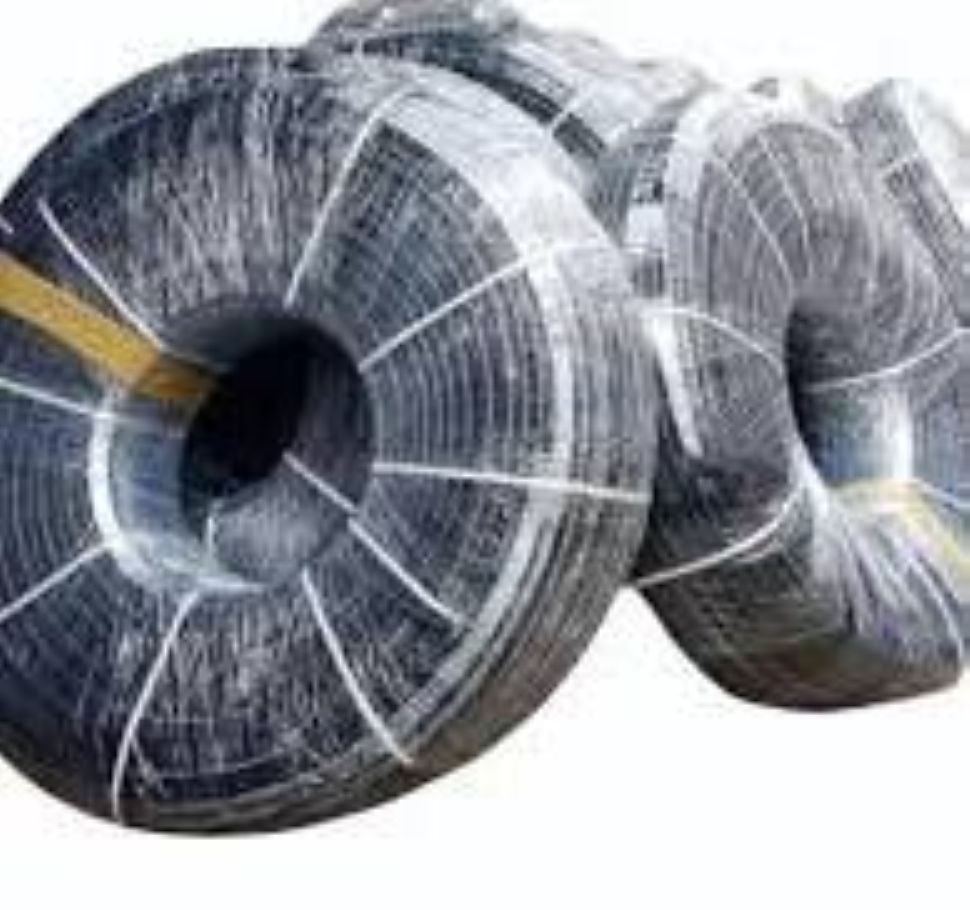

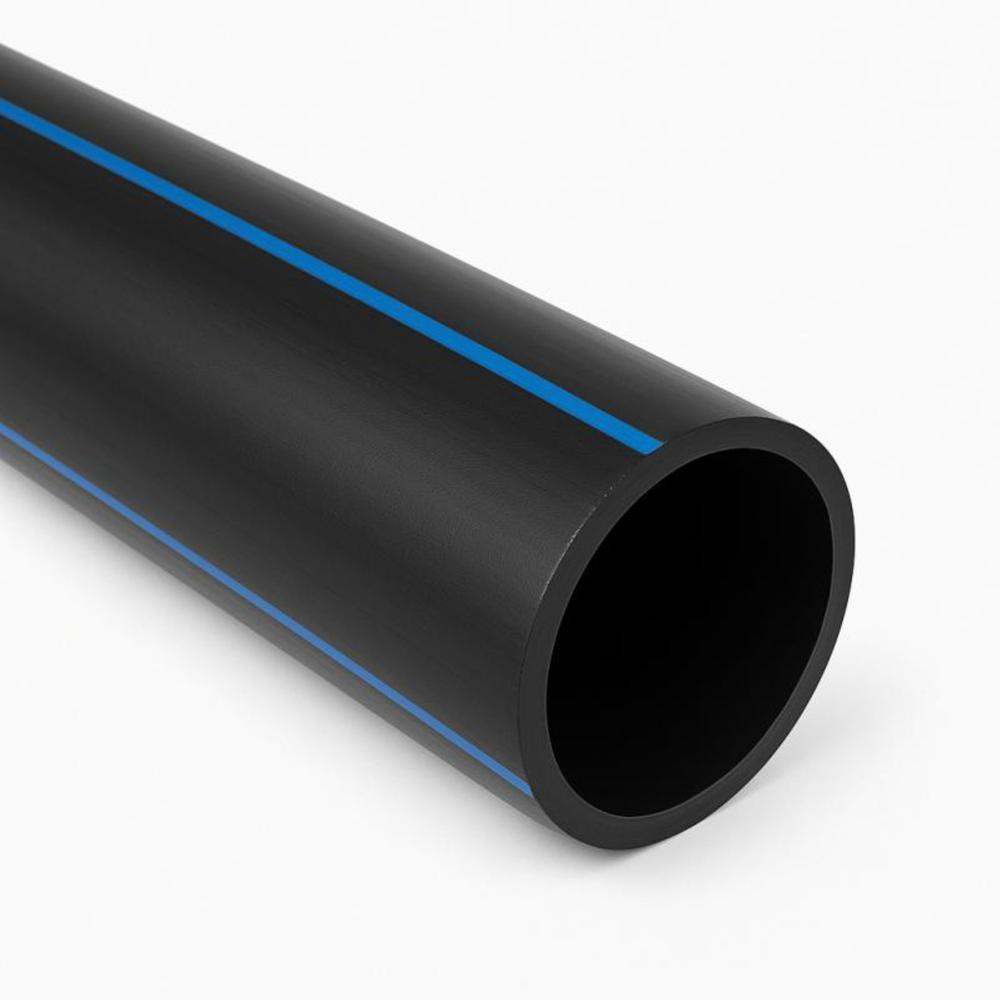

Name: 90mm HDPE Water Pipe
Brand: XENON PIPES INDIA PRIVATE LIMITED
Price: 30.0 INR
Availability: InStock

Price 30.0 INR/ Piece

Get a Price/Quote

MOQ : 500 Pieces

90mm HDPE Water Pipe Specification

Application
Water Supply, Irrigation, Potable Water Distribution, Industrial Applications

Pressure
PN 6 to PN 16 (6-16 Bar; varies as per SDR rating)

Feature
Corrosion Resistant, Flexible, Leak Proof, UV Resistant, Chemical Resistant, Lightweight

Life Span
50 Years (under normal conditions)

Product Type
HDPE Water Pipe

Material
Other

Shape
Round/Cylindrical

Standard
IS 4984:2016, ISO 4427, DIN 8074/8075

Connection Type
Butt Fusion, Electrofusion, Flanged, Mechanical Coupler

Length
6 meters or as per requirement (coils/straight length)

Thickness
3.5mm to 8.2mm (depending on pressure rating/SDR)

Diameter
90mm (outer diameter)

Weight
Varies by wall thickness and length (approx. 1.5-2.0 kg/m for 90mm, SDR 11)

Color
Black with Blue Stripes

Surface Finish
Smooth inner and outer surfaces for low friction loss

Jointing Method
Welded or Mechanical, Leak-proof joints

Temperature Range
-40C to +60C (continuous); suitable for outdoor use

Flexural Modulus
800 MPa (at 20C, ASTM D790)

Hydraulic Roughness Coefficient
k = 0.007mm (very low, enhances flow efficiency)

Burst Pressure
Varies from 2.5 to 3.5 times the working pressure

Tensile Strength
23 MPa as per IS 4984 standards

Impact Resistance
Excellent, suitable for underground/aboveground installation

Density
0.941-0.965 g/cm3 (HDPE Grade PE80/PE100)

UV Resistance
High, Suitable for prolonged exposure to sunlight

Toxicity
Food grade, Non-toxic, Suitable for potable water

Marking
Manufacturer details, diameter, pressure rating, ISI/ISO mark, batch number

Environmental Compliance
RoHS compliant, Recyclable material

90mm HDPE Water Pipe About

The 90mm HDPE Water Pipe is a high-quality, durable piping solution designed for safe and efficient water transportation. Manufactured from premium-grade High Density Polyethylene (HDPE) resin, it offers excellent strength, flexibility, and long-term performance. The pipe is resistant to corrosion, chemicals, UV rays, and environmental stress, making it suitable for both underground and above-ground installations.

With leak-proof joints created through butt fusion or electrofusion welding, the 90mm HDPE pipe ensures a reliable water distribution system with minimal maintenance. It is lightweight, easy to transport, and provides a service life of over 50 years under normal operating conditions.

Applications

Drinking water supply systems
Municipal water distribution
Agricultural irrigation
Borewell and pump connections
Industrial water pipelines
Rural water supply projects
Infrastructure and construction projects

Key Features

Outside Diameter (OD): 90 mm
Material: PE100 / PE80 High Density Polyethylene
Pressure Ratings: PN 6, PN 8, PN 10, PN 12.5, PN 16
Standard: IS 4984 / ISO 4427
Leak-proof fusion joints
Corrosion and chemical resistant
UV stabilized for outdoor use
Lightweight and flexible
High impact and crack resistance
Smooth inner surface for better water flow
Low maintenance and long service life (50+ years)

Exceptional Durability and Strength

With a tensile strength of 23 MPa and a flexural modulus of 800 MPa (at 20C), the 90mm HDPE Water Pipe is engineered for robust performance. It withstands working pressures from PN 6 to PN 16, with burst pressures up to 3.5 times the rated values, ensuring safety and longevity in demanding water supply and industrial systems.

Optimized for Flow and Efficiency

A very low hydraulic roughness coefficient (k = 0.007mm) and smooth surfaces minimize energy losses and enhance water flow. This feature, coupled with the pipe's corrosion, chemical, and UV resistance, provides superior operational efficiency and reduces maintenance, making it a cost-effective, reliable solution.

Safe, Certified and Environmentally Compliant

Manufactured from food-grade, non-toxic HDPE, the pipe is suitable for potable water. It comes with comprehensive product markings, including ISI/ISO marks, and is RoHS compliant and recyclable, supporting safety and environmental goals. The product life span exceeds 50 years under normal operational conditions.

FAQ's of 90mm HDPE Water Pipe:

Q: How is the 90mm HDPE Water Pipe jointed for a leak-proof installation?

A: The pipe can be connected using several methods including butt fusion, electrofusion, flanged joints, or mechanical couplers. These techniques create strong, leak-proof seals, conforming to industry standards for critical water distribution and industrial applications.

Q: What are the primary benefits of using this HDPE pipe for outdoor installations?

A: Its high UV resistance, flexibility, and excellent impact strength ensure long-lasting performance when exposed to sunlight or installed aboveground and underground. The pipe's material resists corrosion and chemicals, making it highly reliable for outdoor water supply systems.

Q: When should I choose PE80 or PE100 grade for my water supply system?

A: PE100 is suitable for higher-pressure systems or where enhanced strength is required, while PE80 is ideal for medium pressure applications. Selection depends on your project's specific pressure (SDR rating) and performance demands.

Q: Where can the 90mm HDPE Water Pipe be used?

A: This pipe is versatile for a range of applications such as municipal water supply, potable water distribution, irrigation systems, and various industrial uses, owing to its chemical resistance and food-grade approval.

Q: What marking information is provided on the HDPE pipe and why is it important?

A: Each pipe is marked with the manufacturer's details, diameter, pressure rating, ISI/ISO mark, batch number, and other relevant data. These markings certify compliance and ensure traceability, essential for quality assurance and regulatory requirements.

Q: Is this HDPE pipe environmentally friendly and safe for drinking water?

A: Yes, the pipe is made from food-grade, non-toxic HDPE and is fully compliant with RoHS standards. It is completely suitable for potable water and is recyclable, supporting both safety and environmental stewardship.
